MPA-200 Product Introduction
Factory-integrated, pre-tested, rapidly deployable modular E-House solutions for 1–20MW industrial power systems. From pump stations to power plants — one platform, multiple configurations.
Overview
The Market Is Shifting to Modular E-House Solutions
The E-House market is a growing modular power-distribution segment serving utilities, oil and gas, mining, renewable energy, transportation, industrial, and remote-site applications. The strongest commercial message is that the E-House moves electrical-room integration, wiring, quality inspection, and functional testing from a variable site environment into a controlled factory environment.
Product

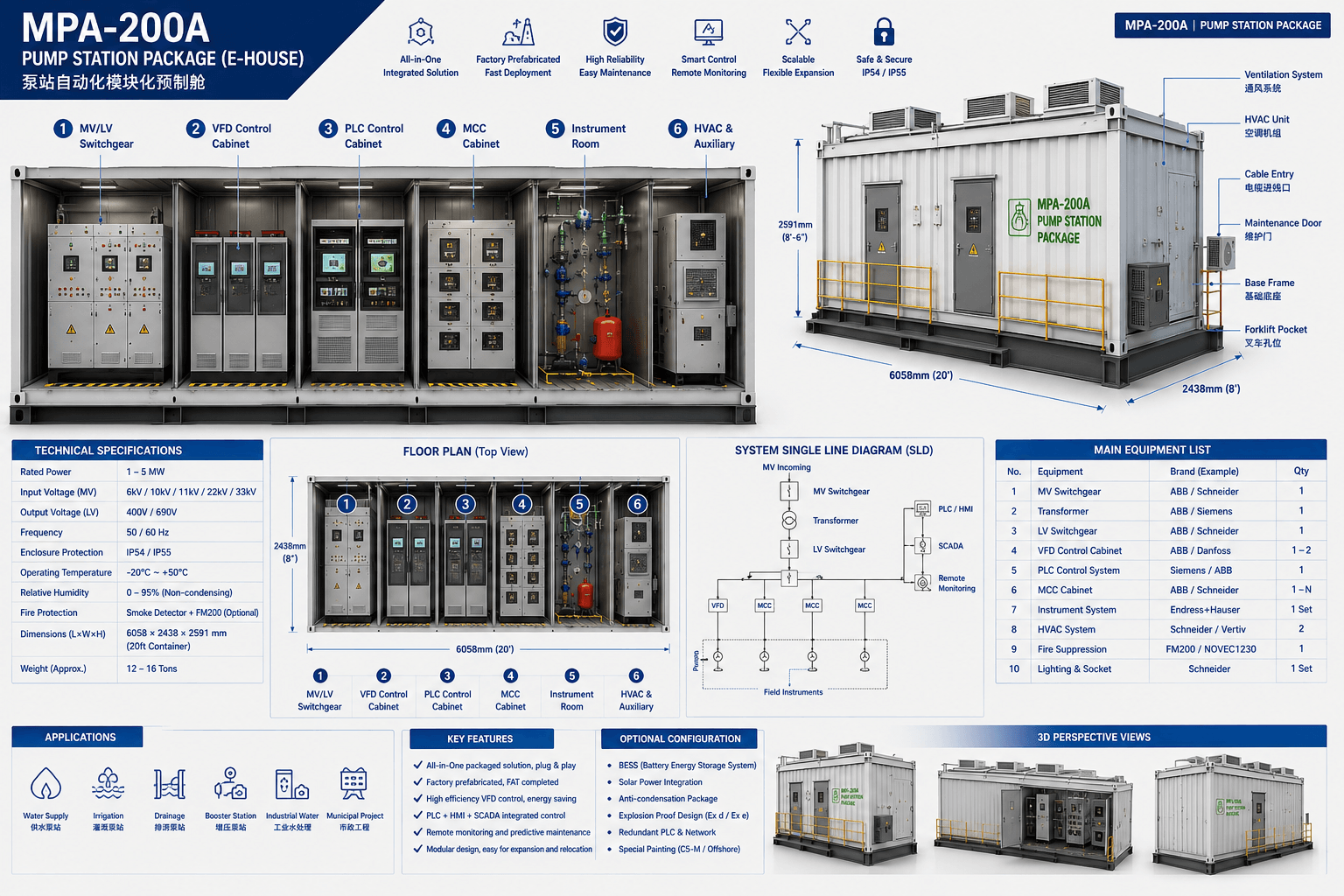

MPA-200A
Pump Station Package (E-House)
All-in-One prefabricated solution for pump station automation. Factory prefabricated, FAT completed, plug & play deployment with high efficiency VFD control and PLC + HMI + SCADA integrated control.
Rated Power: 1 – 5 MW
Input Voltage: 6kV – 33kV
Dimensions: 6058 × 2438 × 2591 mm
Weight: 12 – 16 Tons

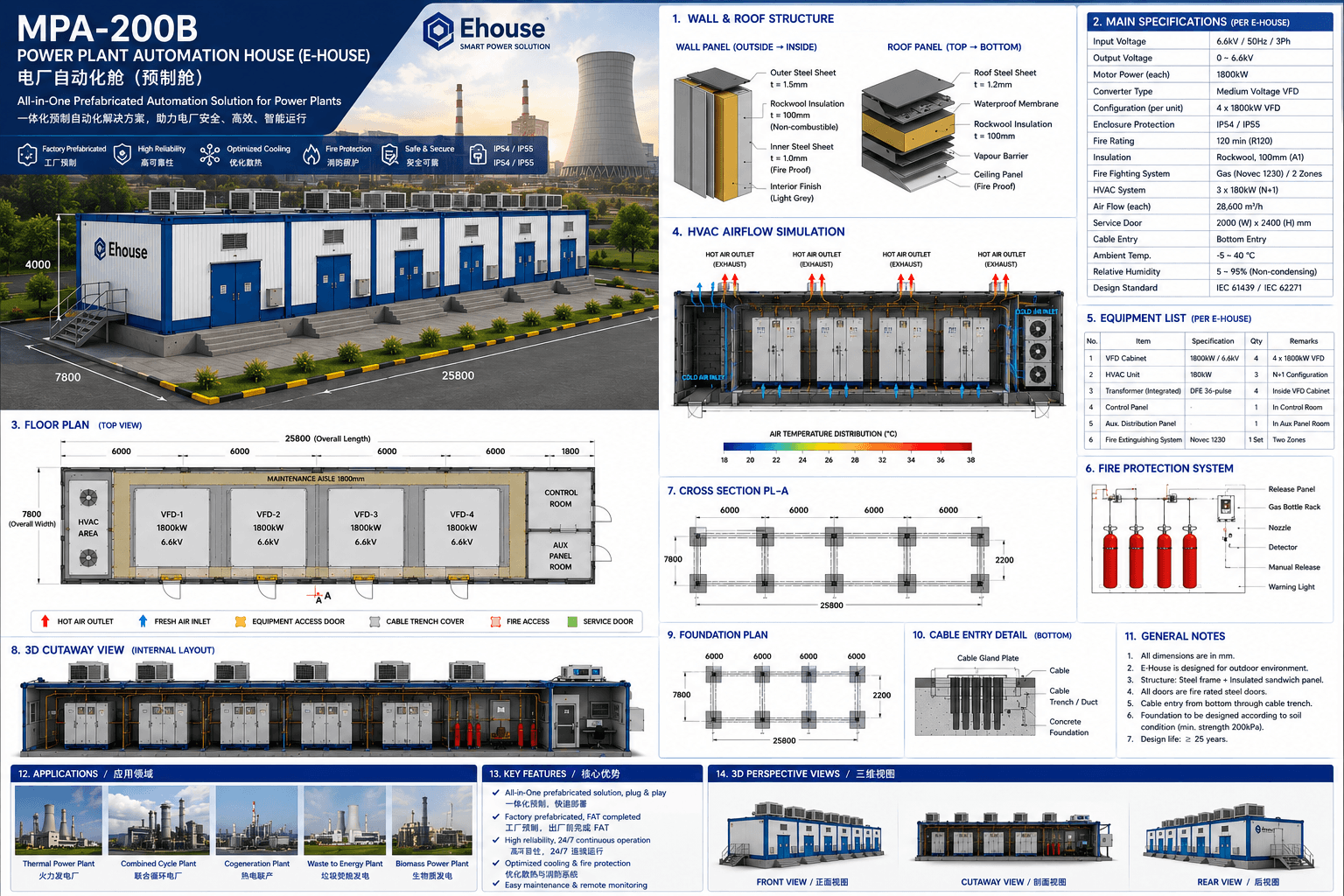

MPA-200B
Power Plant Automation House (E-House)
All-in-One prefabricated automation solution for power plants. Factory prefabricated with high reliability, 24/7 continuous operation, optimized cooling & fire protection, and easy maintenance with remote monitoring.
Motor Power: 4 × 1800kW
Input Voltage: 6.6kV / 50Hz
Dimensions: 25800 × 7800 × 4000 mm
HVAC System: 3 × 180kW (N+1)
Architecture
Five Engineering Layers, One Integrated Platform

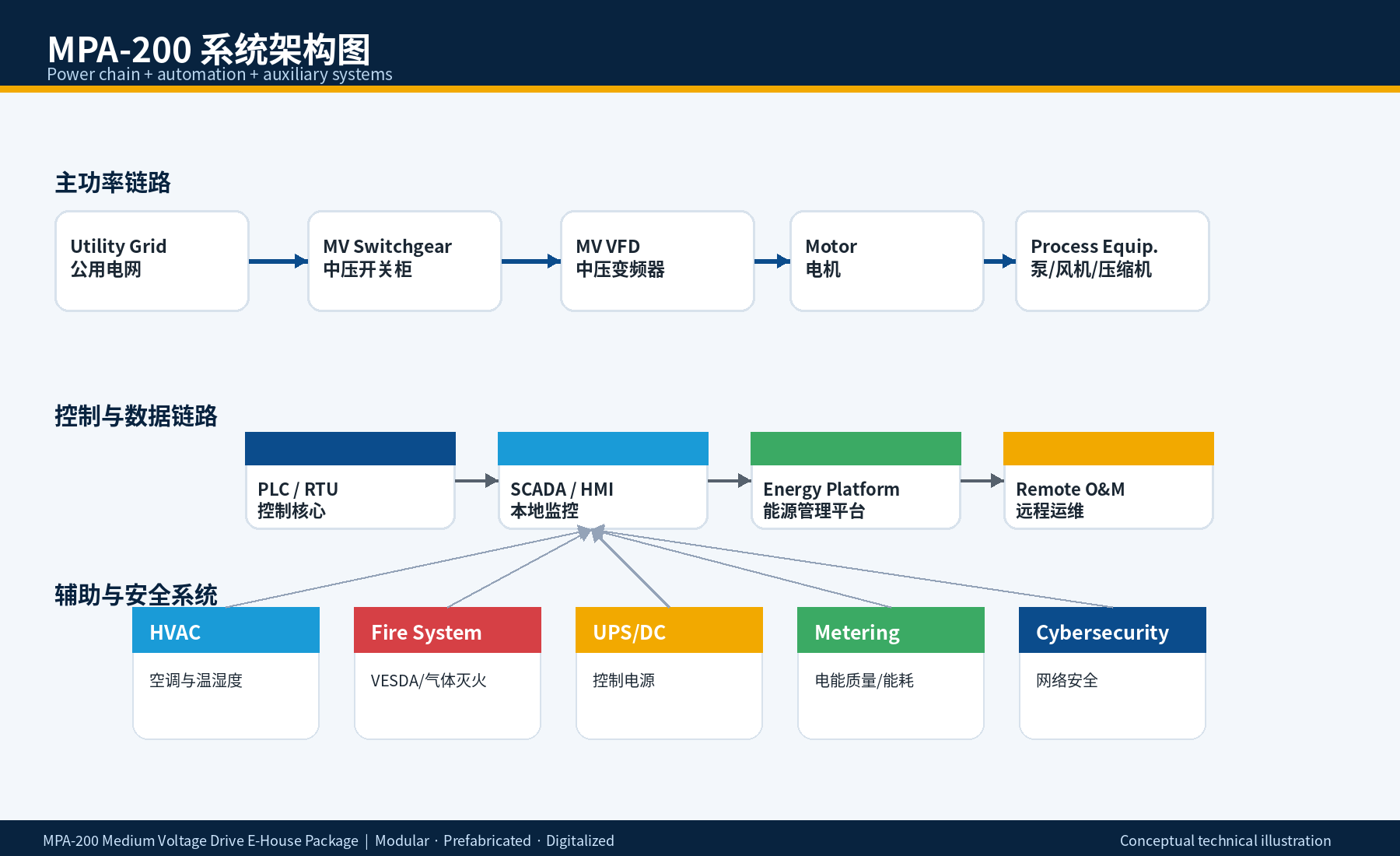

Three Chains Form the Unified Architecture
| Power Chain | Automation Chain | Safety Chain |
|---|---|---|
From MV grid to motor load — integrated drive path MV Switchgear → Transformer/VFD → LV Distribution → Motor | From PLC to SCADA to energy platform — unified data path PLC/RTU → SCADA/HMI → Digital Platform → Remote O&M | HVAC, fire, UPS & cybersecurity within product boundary HVAC → Fire System → UPS/DC → Access Control → Earthing |
Industries
Serving Six Core Market Segments
The E-House should be marketed to buyers who value schedule certainty, integrated engineering, reduced site risk, and modular deployment.
Utilities & Grid
Pain: Brownfield upgrade windows are short
Modular substation replacement for faster energization
Data Centers
Pain: Capacity must be deployed quickly with reliability
Repeatable power block for critical infrastructure expansion
Mining & Remote
Pain: Site labor is expensive, logistics are difficult
Ruggedized factory-integrated electrical room for remote deployment
Oil & Gas
Pain: Safety, hazardous interfaces, approval requirements
Engineered electrical room with fire, gas, and hazardous-area interface
Renewables & BESS
Pain: Grid interfaces and site schedules must be coordinated
Modular collector, PCS interface, or auxiliary power E-House
Power Generation
Pain: High-power VFD systems for ID/FD fans, pumps
Power plant automation house with 24/7 continuous operation
From Concept to Continuous Operation
The E-House should be marketed to buyers who value schedule certainty, integrated engineering, reduced site risk, and modular deployment.
Requirement Clarification
Voltage, power, load list, site environment, logistics constraints & interface requirements
Standard Selection
Product variant (A/B), module combination, VFD quantity, redundancy level & protection scheme
Engineering Development
SLD, layout, I/O list, SCADA template, HVAC calculation, fire matrix & acceptance plan
Factory Prefab & FAT
Integration, internal testing, continuity checks, relay tests, interlock verification & customer FAT witness
SAT & Commissioning
Site installation, energization, VFD startup, load coupling, interlock testing & trial operation
Remote O&M
Alarm analysis, energy reports, health diagnostics, predictive maintenance & annual service
